General Specifications

Woofer 8" (200mm)
Amplier Power 125W RMS
Frequency Response 35Hz – 120Hz
Fuse 15A
Maximum Current Draw 12A
Quiescent Current Draw <800mA
Input Sensitivity 0.05V – 2V Line-Level Input;
0.5V – 20V High-Level Input
Crossover Frequency 50Hz – 120Hz
Crossover Slope 12dB/octave
Bass Boost 0dB to +9dB @ 70Hz

Dimensions
(L x W x H)13-9/16" x 9-7/8" x 2-13/16" (344mm x 250mm x 71mm)

Features
Proprietary, shallow-profile woofer

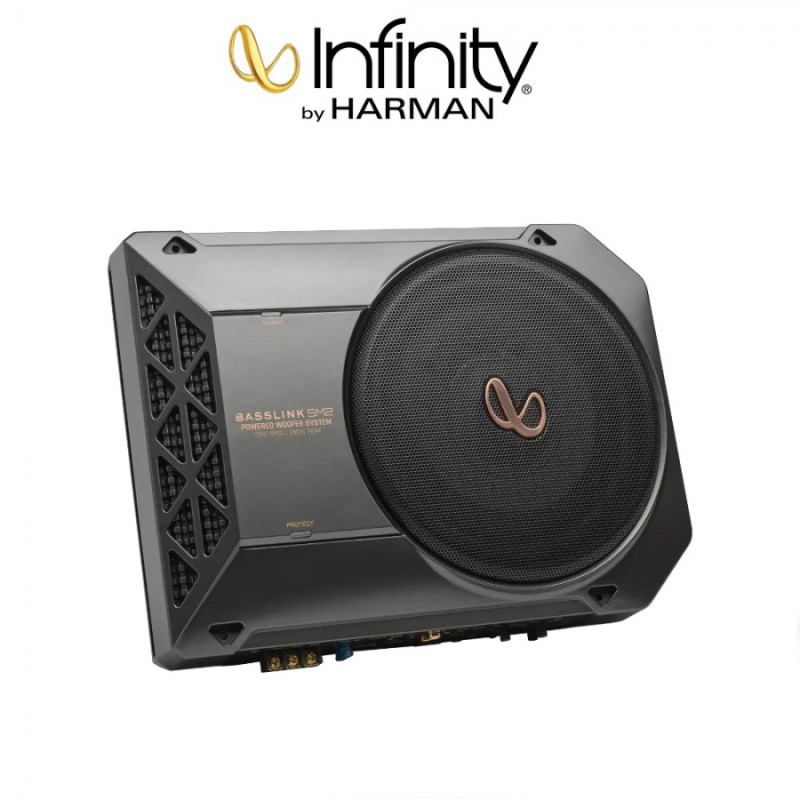

The 8" (200mm) subwoofer in the BassLink SM2 is designed specifically to provide low distortion and great bass performance in its custom tuned ABS enclosure with a remarkably compact footprint.

Efficient Class D amplifier
The amp that powers the BassLink SM2 produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system.

Intelligent electronic design
The BassLink SM2 employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Crossover control
A variable crossover control (50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the BassLink SM2 produces. Fine-tune the crossover to achieve a smooth transition from the BassLink SM2 to the rest of the system’s speakers.

Flexible EQ adjustments
Level control adjusts the BassLink SM2’s volume to the other speakers in your system, while Bass Boost control lets you minimize peaks or dips in bass frequencies in your car’s acoustic environment.

Line- and high-level inputs
For added installation flexibility, the BassLink SM2 features both line- and high-level inputs. If you use the high-level inputs to connect the BassLink SM2 to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.

ΗΧΕΙΑ
Subwoofer	Ναι

INFINITY SUBBLSM2
